What Is Duct Free?

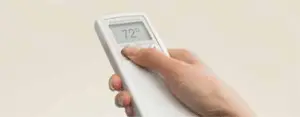

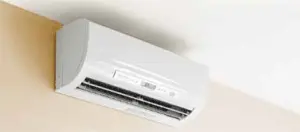

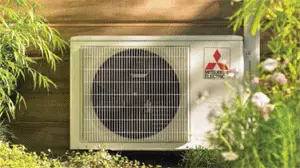

For decades, split-zoning air-conditioning and heat pump systems have been the quiet solution for cooling and heating problems around the world. Our quiet and powerful systems have three main components: an indoor unit, outdoor unit, and remote controller. Installation is as simple as mounting the indoor and outdoor units, connecting the refrigerant lines, and making a few electrical connections.
Why Mitsubishi Electric Systems?
Our commitment to empower homeowners to create their own customized comfort is fueled by continual innovation and refinement. Here are some of the technologies that help cool and heat your home more efficiently and effectively:
Hot-start
The indoor unit’s fan only blows air when the coil has warmed to the desired temperature. An energy-saving measure, it also prevents drafts of cold air at start-up.
i-see Sensor™
This sensor scans the room and adjusts temperature and airflow automatically. Maintain consistent comfort by eliminating cold and hot spots.
H2i®
Technology
Hyper-Heating INVERTER (H2i) technology is designed to provide comfortable indoor temperatures in extreme cold-climate conditions (as low as -13° F) while saving energy and money.
Zone
Control
Why cool or heat rooms you don’t use? Why sweat or shiver in those you do? Zone control allows you to optimize the temperature of any space with an indoor unit to save energy and reduce costs. Create your own perfect comfort zones!
Quiet Operation
Indoor units run quiet as a whisper and outdoor units run quieter than a refrigerator. You have to hear it (or not) to believe it!
Enhanced Filtration Systems
Washable filters last up to 10 years and remove pollen, dust, dander and other allergens that reduce indoor air quality. Each room has its own filter to ensure pristine air.
Where Can Mitsubishi Electric Products Be Used?
They’re also equipped with an anti-allergen filter and prevent the cross-flow of air with contaminants. And because they can be controlled by zone, it’s easy to set the controls for the exact room temperature you want.
How does it work? Mitsubishi Electric Cooling & Heating can fit into almost any space because their innovative engineering optimizes the capabilities of the INVERTER technology and R410A refrigerant for more efficient systems with smaller indoor and outdoor units. R410A refrigerant is environmentally friendly, with zero Ozone Depletion Potential (ODP). The units themselves are also made of recyclable materials.

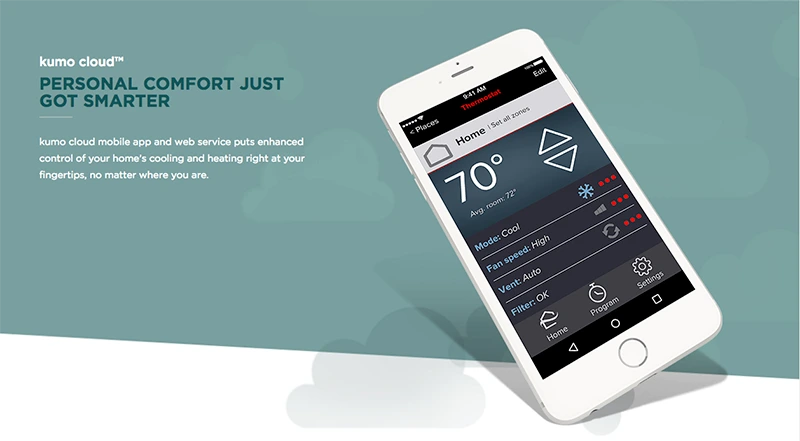

Control At Your Fingertips, Anytime, Anywhere!
Mitsubishi High Wall Indoor Ductless Heat Pump Products

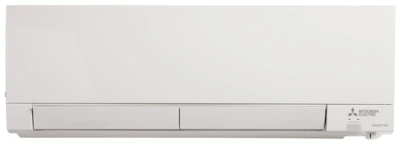

Mitsubishi Ductless Indoor Wall Mount Unit-Heat And Cool
Model Family: MSZ-FS
Purpose: Heat and Cool
Zone Capability: Single zone
Efficiency SEER: Up to 26.1 SEER
Efficiency EER: N/A
Efficiency HSPF: Up to 12.5 HSPF
Matching Outdoor Unit: Single-Zone: MUZ-FS
Matching Outdoor Unit: Multi-Zone:
Energy Star Rated: ENERGY STAR®
Refrigerant Type: R-410A
Number of Fan Speeds: Multiple fan speed options: Quiet, Low, Medium, High, Super-high, Auto
Sound Level: Quiet operation
Wireless Remote: Yes
Factory Warranty Parts: 10-Year Parts Limited Warranty
Manufacturer’s Stated Benefits:
- Triple-action Filtration: Nano Platinum Filter, Deodorizing Filter, & Electrostatic Anti-Allergy Enzyme Filter.
- Hot-Start Technology: no cold air rush at equipment startup or when restarting after Defrost Cycle.
- Absence Detection for energy-saving mode.

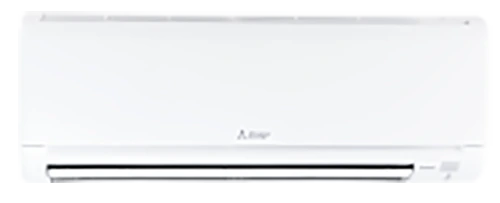

Wall Mounted Heat And Cool MSZ-GL
Model Family: MSZ-GL
Purpose: Heat and Cool
Zone Capability: Single-zone and multi-zone
Efficiency SEER: Up to 24.6 SEER
Efficiency EER:
Efficiency HSPF: Up to 12.8 HSPF
Matching Outdoor Unit: Single-Zone: MUZ-GL
Matching Outdoor Unit: Multi-Zone: MXZ-C
Energy Star Rated: ENERGY STAR®
Refrigerant Type: R-410A
Number of Fan Speeds: 5 Fan Speeds
Sound Level: As low as 19 DBA
Wireless Remote: Yes
Factory Warranty Parts: 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
Manufacturer’s Stated Benefits:
- Wall-mounted units independently manage the comfort of a single room and can maintain the precise temperature you set.
- Advanced filtration features deodorize and purify the air in your home, contributing to better health.

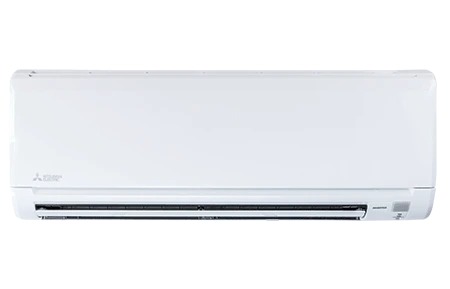

Mitsubishi Ductless High Wall Indoor Unit- Heat And Cool
Model Family: MSZ-WR
Purpose: Heat and Cool
Zone Capability: Single zone
Efficiency SEER: Up to 16 SEER
Efficiency EER: 9.0 EER
Efficiency HSPF: 8.5 HSPF
Matching Outdoor Unit: Single-Zone: MUZ-WR
Matching Outdoor Unit: Multi-Zone:
Energy Star Rated: No
Refrigerant Type: R-410A
Number of Fan Speeds: 4 Fan Speeds
Sound Level: Quiet operation
Wireless Remote: Yes
Factory Warranty Parts: 10-Year Parts Limited Warranty
Manufacturer’s Stated Benefits:
- Available capacities in KBTU/H: 09, 12, 18, 24
- Heating operation range: 5° F to 75° F
- Cooling: 32° F to 115° F
- Compatible with kumo cloud® control app and Thermostat Interface
Wall Mounted Heat And Cool MSZ-D
Model Family: MSZ-D3
Purpose: Heat and Cool
Zone Capability: Single zone
Efficiency SEER: Up to 14.5 SEER
Efficiency EER: N/A
Efficiency HSPF: Up to 8.2 HSPF
Matching Outdoor Unit: Single-Zone: MUZ-D
Matching Outdoor Unit: Multi-Zone:
Energy Star Rated: No
Refrigerant Type: R-410A
Number of Fan Speeds: 4 Fan Speeds
Sound Level: As low as 32 DBA
Wireless Remote: Yes
Factory Warranty Parts: 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
Manufacturer’s Stated Benefits:
- This model has multi-stage allergen filtration, removing particulates and contaminants from the air.
Mitsubishi High Wall Indoor Ductless Cool-Only Products
Wall Mounted Air Conditioner MSY-GL
Model Family: MSY-GL
Purpose: Cool only
Zone Capability: Single zone
Efficiency SEER: Up to 24.6 SEER
Efficiency EER:
Matching Outdoor Unit: Single-Zone: MUY-GL
Matching Outdoor Unit: Multi-Zone: N/A
Energy Star Rated: ENERGY STAR®
Refrigerant Type: R-410A
Number of Fan Speeds: 5 Fan Speeds
Sound Level: As low as 19 DBA
Wireless Remote: Yes
Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration
Manufacturer’s Stated Benefits:
- This model has a cooling mode, allowing you to achieve precise temperature control during warm periods.
- This model has multi-stage allergen filtration, removing particulates and contaminants from the air.

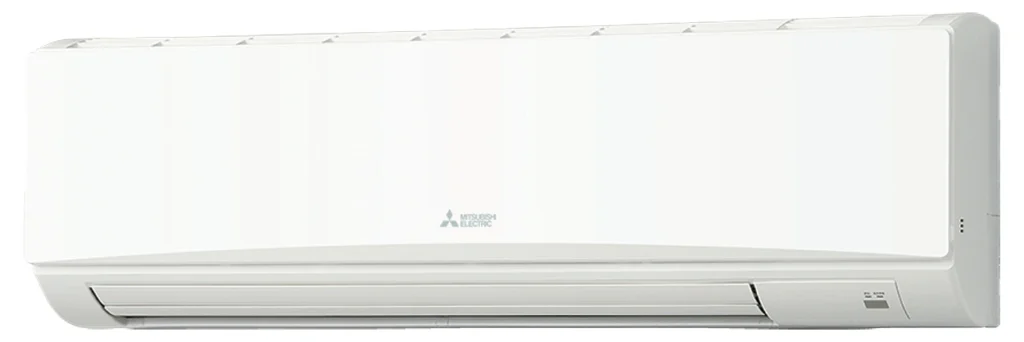

Wall Mount Air Conditioner MSY-D
Model Family: MSY-D
Purpose: Cool only
Zone Capability: Single Zone
Efficiency SEER: Up to 16 SEER
Efficiency EER: Up to 8.2 EER
Matching Outdoor Unit: Single-Zone: MUY-D
Matching Outdoor Unit: Multi-Zone: NA
Energy Star Rated: No
Refrigerant Type: R-410A
Number of Fan Speeds: 4 Fan Speeds
Sound Level: Whisper Quiet
Wireless Remote: Yes
Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration
Manufacturer’s Stated Benefits:
- This model has a cooling mode, allowing you to achieve precise temperature control during warm periods.
- This model has multi-stage allergen filtration, removing particulates and contaminants from the air.
Mitsubishi Alternate Indoor Ductless Products

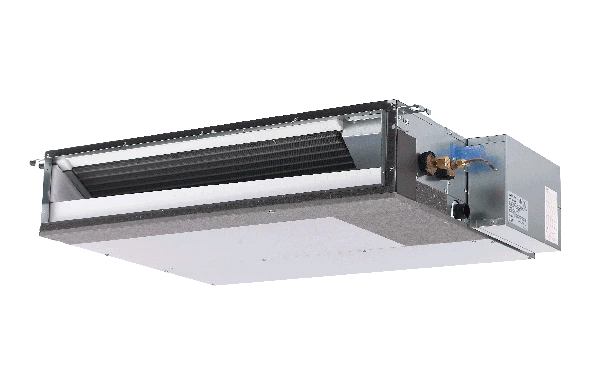

Horizontal Ducted Heat Pump SEZ-KD
Model Family: SEZ-KD
Purpose: Heat/Cool
Zone Capability: Single & Multi-Zone
Efficiency SEER: Up to 17.5 SEER
Efficiency EER: N/A
Efficiency HSPF: Up to 10 HSPF
Matching Outdoor Unit: Single-Zone: SUZ-KA
Matching Outdoor Unit: Multi-Zone: MXZ-B
Energy Star Rated: Yes
Refrigerant Type: R-410A
Number of Fan Speeds: 3
Sound Level: Whisper Quiet
Wireless Remote: No
Factory Warranty Parts: 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
Manufacturer’s Stated Benefits:
- Auto Restart: especially useful at the time of power outages, the unit turns back on automatically when power is restored
- Auto Changeover: automatically switches between heating and cooling modes to maintain the desired temperature
Wall Mount Air Conditioner MSY-D

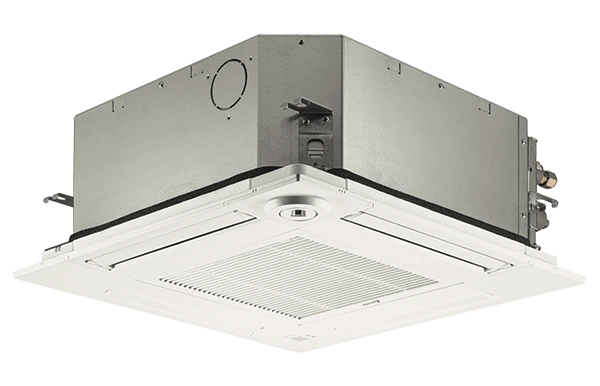

Model Family: SLZ-KF
Purpose: Heat/Cool
Zone Capability: Single & Multi-Zone
Efficiency SEER: Up to 22.4 SEER
Efficiency EER: N
Efficiency HSPF: Up to 12.2 HSPF
Matching Outdoor Unit: Single-Zone: SUZ-KA
Matching Outdoor Unit: Multi-Zone:
Energy Star Rated: Some Models Energy Star Rated
Refrigerant Type: R-410A
Number of Fan Speeds: 3
Sound Level: Whisper Quiet
Wireless Remote: No
Factory Warranty Parts: 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
Manufacturer’s Stated Benefits:
- Auto Changeover: automatically switches between heating and cooling modes to maintain the desired temperature.
- Auto Restart: especially useful at the time of power outages, the unit turns back on automatically when power is restored.
- On/Off Timer: use the remote controller to set the times of turning the unit on and off.

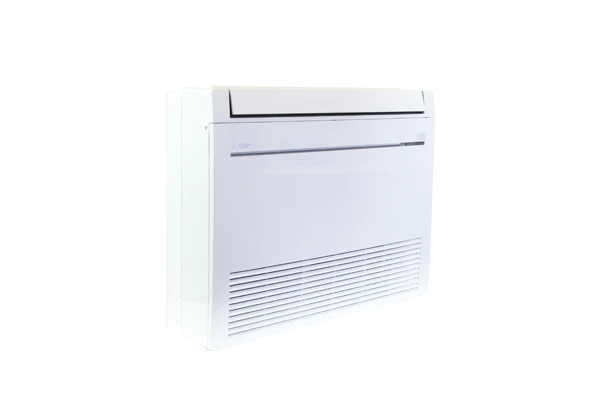

Floor-Mount Inside Unit MFZ-KJ
Model Family: MFZ-KJ
Purpose: Heat/Cool
Zone Capability: Multi-zone and Single Zone
Efficiency SEER: Up to 28.2 SEER
Efficiency EER: NA
Efficiency HSPF: Up to 13.6 HSPF
Matching Outdoor Unit: Single-Zone: MUFZ-KJ
Matching Outdoor Unit: Multi-Zone: MXZ-C
Energy Star Rated: ENERGY STAR®
Refrigerant Type: R-410A
Number of Fan Speeds: 5 Fan Speeds
Sound Level: Whisper Quiet
Wireless Remote: Yes
Factory Warranty Parts: 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
Manufacturer’s Stated Benefits:
- Auto Changeover: automatically switches between heating and cooling modes to maintain the desired temperature.
- Auto Restart: especially useful at the time of power outages, the unit turns back on automatically when power is restored.
- Weekly Timer: easily set desired temperatures and operation ON/OFF times to match your lifestyle.
- On/Off Timer: use the remote controller to set the times of turning the unit on and off.
- Low-temperature Cooling: intelligent fan speed control on P-series outdoor units that ensures optimum performance.
