Ventilators
Ventilators bring fresh air into your home without losing heating or cooling energy. Their unique energy exchange system transfers the heating or cooling energy from the stale air being exhausted from your home to the fresh air the ventilator brings into your home.
If your family suffers from allergies, ventilators are a much better alternative for introducing fresh air into your home versus opening your windows. They also do a great job of reducing cooking and pet odors, smoke and other pollutants out of your home.

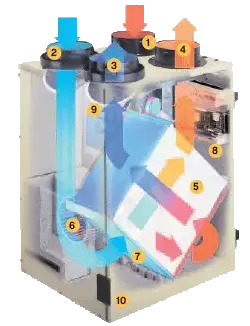

How It Works?
Internal Air Intake
Draws in stale indoor air, directing it through the heat exchanger core.
External Air Intake
Draws outside air, venting it through the air filter.
Internal
Air Exhaust
Vents indoor air outside from the heat exchanger core. Up to 84% of the indoor heat has been removed, helping minimize utility costs.
Fresh
Air Exhaust
Vents conditioned, heated outdoor air into your living areas.
High Efficiency Heat Recovery Core
Extracts heat from stale indoor air and transfers it to fresh outdoor air for maximum comfort with little heat loss. This core also removes excess humidity from recirculated air – lower humidity levels help you stay comfortable at higher temperatures in the summer and lower temperatures in the winter.
Ventilator Motor
Moves air through the system efficiently and quietly.
Air Filter
Cleans outdoor air of small particles before they circulate through your home.
Electronic Circuit Board
Adjusts air circulation modes and motor speeds.
Damper Defrost
Helps prevent frost from forming within the system, eliminating the need for a supplemental energy -consuming electric defroster. This defroster engages when temperatures drop below 23 degrees Fahrenheit.
Briefcase-Style Exterior Latches
Allow easy filter changes with no tools required.
Simple Wall Control
Makes operating the HRV is easy and convenient.
Ventilator Product Offering
Energy Recovery Ventilator
Model Family: AERVR
Airflow: N/A
Sound Level: Quiet performance
Warranty: 10 Year-limited warranty on internal functional parts
Manufacturer’s Stated Benefits:
- Fresh indoor air
- Air ventilation around the clock or at your control
- Saves energy during hot, humid weather by pre-cooling and dehumidifying incoming air
- Saves energy during cold, dry weather by recovering heat and moisture from the air that’s being expelled
- Specially engineered for low maintenance and longer life
- Slide-out filter is easily accessible and can be cleaned with an ordinary household vacuum cleaner
- Fits your life: easily installed in the attic, garage or basement in virtually any position
- Automatically ventilates your air round the clock – or use the manual control if you want additional ventilation
